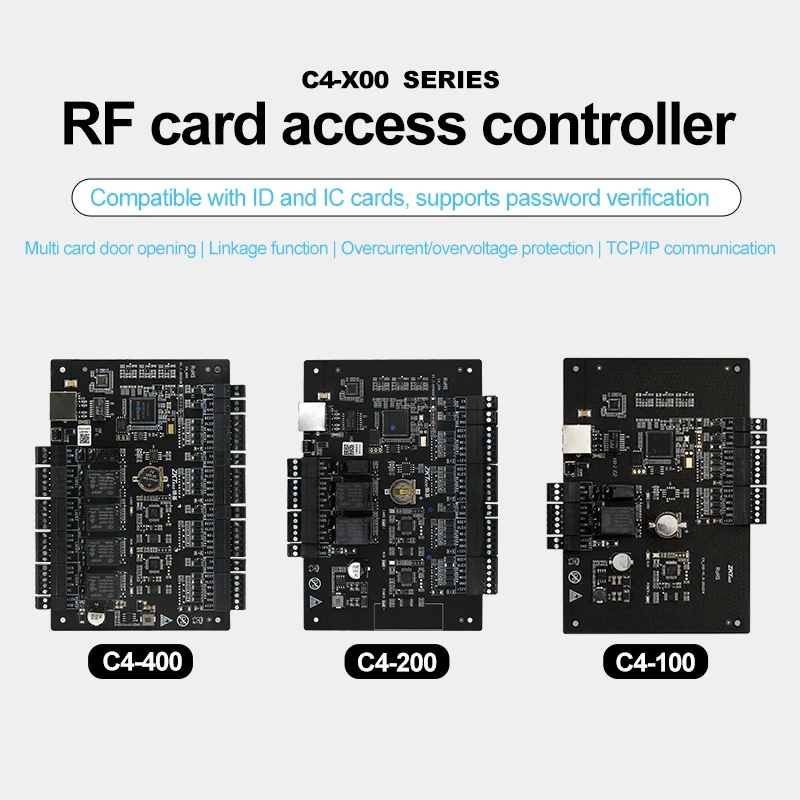

ZKAccess3.5 ZKteco Access Controller Panel Board LAN TCP/IP WG Input to Wiegand Reader for Door Multi Gate Access Control System

ZKAccess3.5 ZKteco Access Controller Panel Board LAN TCP/IP WG Input to Wiegand Reader for Door Multi Gate Access Control System

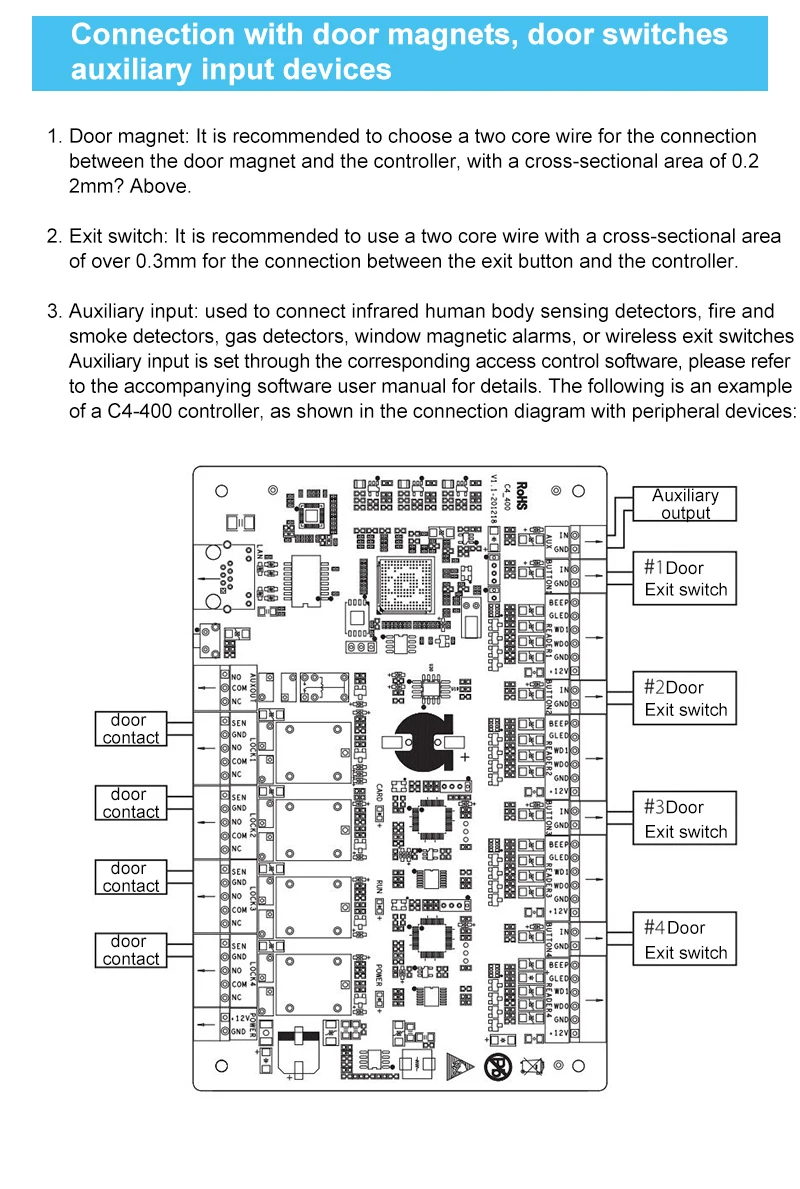

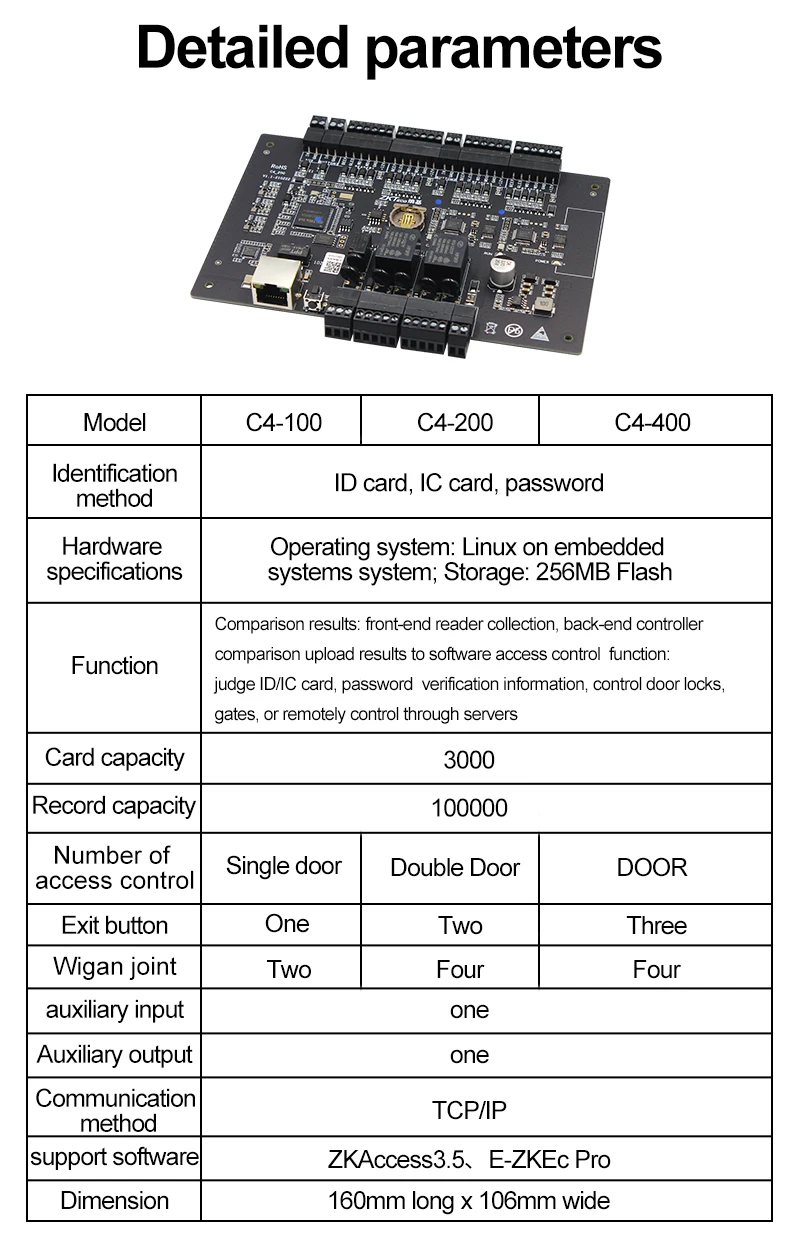

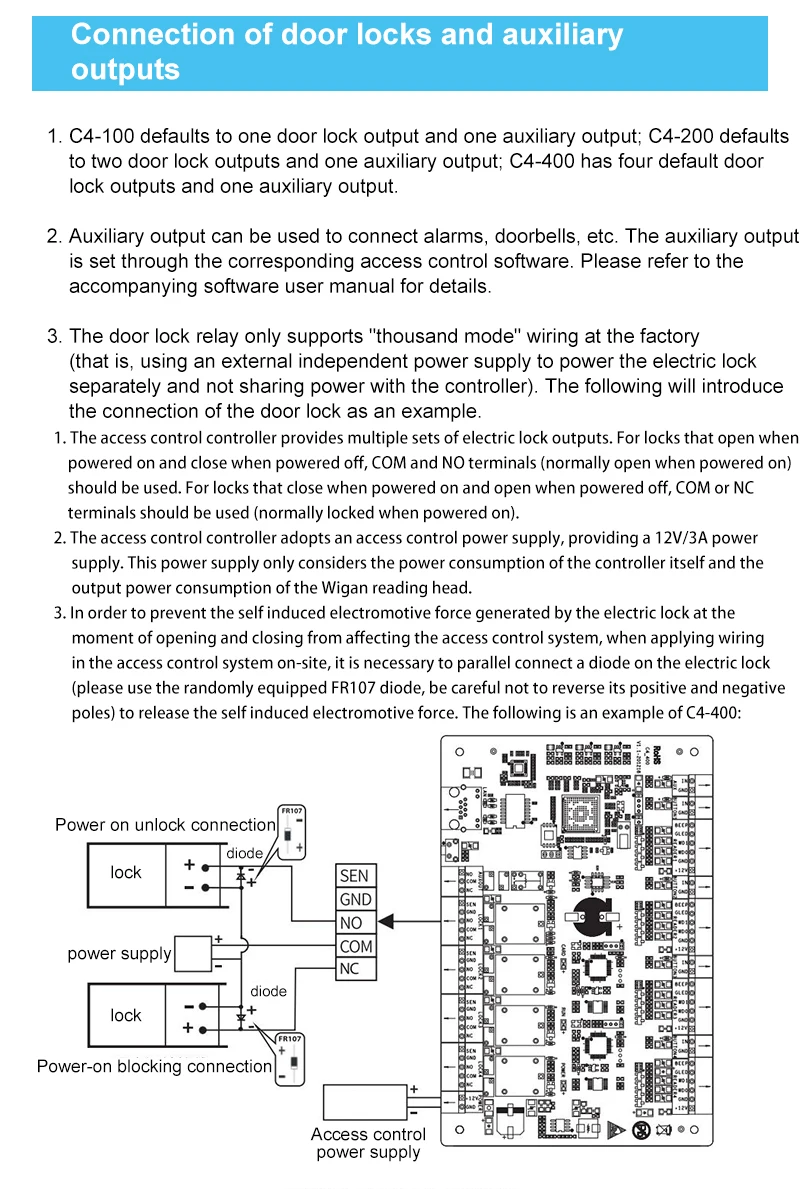

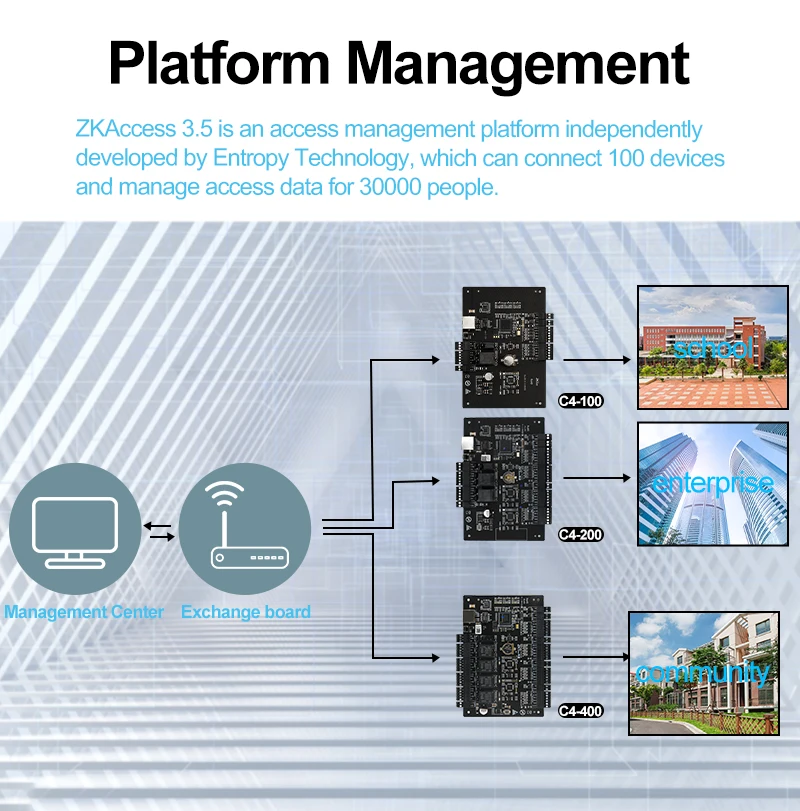

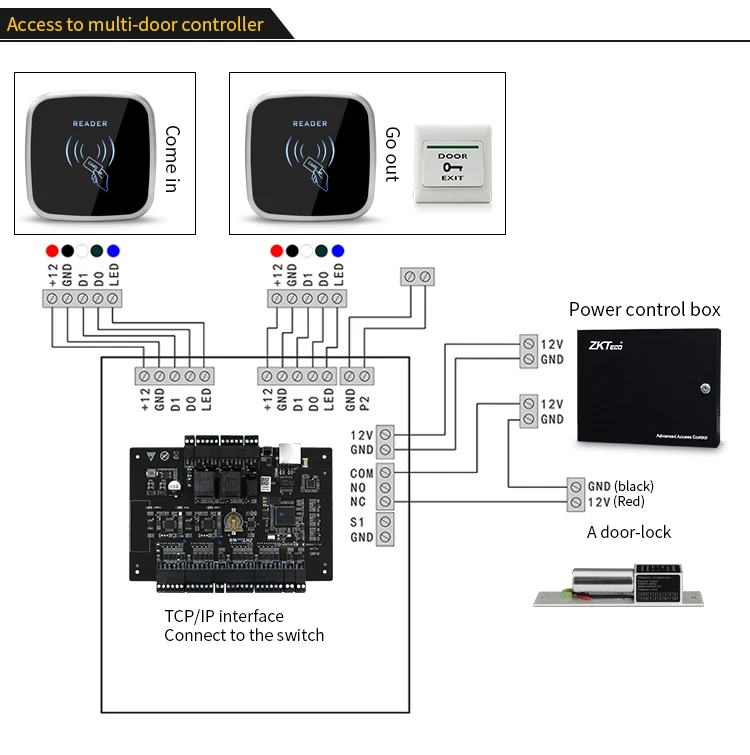

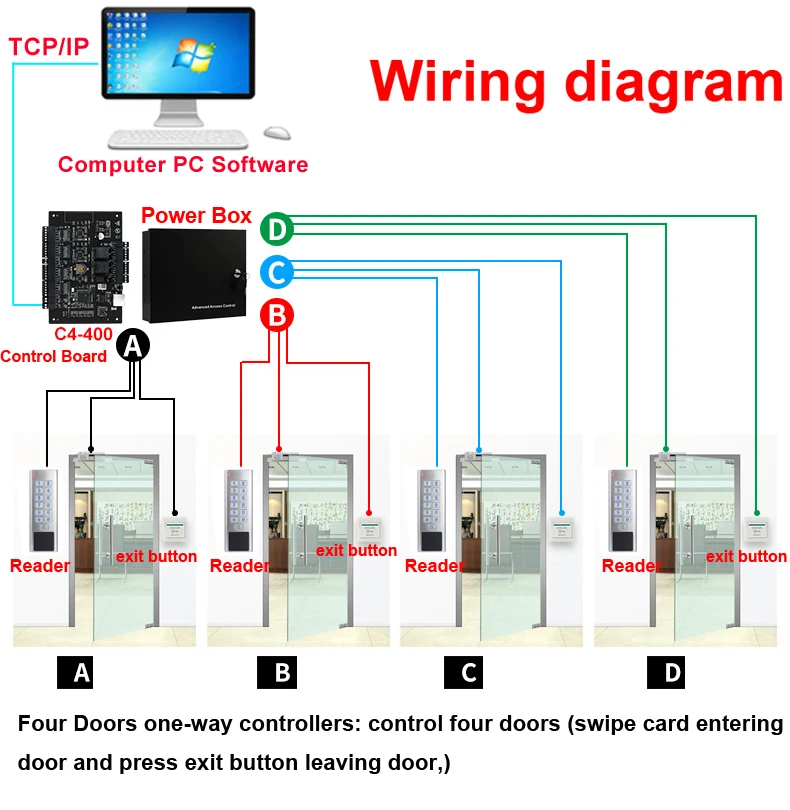

Features: .Integration with Other Security Systems .Supports different wiegand reader wiegand format, and can connect to different reader, including ID card reader .Input/Output Ports to Control Doors Connect with variety of sensors, alarms, exit buttons, electric lock and other devices. .Variety of Communication Function Using either serial or TCP/IP communication, it provides reliable network system .B/S structure software It is easy to manage the system by browser from client PC. There is no need to install software on each client. .Normal open after first punch card can be setup .Real-time Monitoring of Door status Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system. .Simple Access Control System Configuration .Interlock function Link different doors with special logic that one door is Open, others should be closed. .Multi-card operation .Anti-Passback .Duress Mode The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software. Specifications: CPU 32bit MIPS CPU RAM 32M bits Flash Memory 256M bits User 30,000 Event Buffer 100,000 Power / Current DC 9.6V-14.4V, Rated Max.1A Reader Port 4ea (26bit Wiegand, 8bit Burst for PIN) Communication RS485, TCP/IP Baud Rate 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) Input Port 12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4)
