NO TAX Dahua Mutil language Ipc-Hum8441-E1-L1 4MP Covert mini WizMind Network Camera KIT

4mp Hidden Pinhole Network Camera KitIpc-Hum8441-E1-L1

1:1/2.7-in. 4MP progressive scan CMOS sensor
2:4MP (2688x1520) @ 30fps, 2.8mm fixed lens
3: MicroSD card slot (supports up to 256GB capacity)
4:Smart H.265+ and Smart H.264+ Dual Codec
True Wide Dynamic Range (120dB)
5: Analytics + functions - perimeter protection and face detection
6: ArcticPro series camera - operating from -40°C (-40°F)
7: Five-year warranty (when sold through an authorized Dahua dealer)

Camera

Image sensor

1/2.7" CMOS

Maximum resolution

2688 (H) x 1520 (V)

ROM

128 MB

RAM

1 GB

Scanning system

Progressive Progressive

Electronic shutter speed

Auto/manual 1/3 s-1/100,000 s

Min. Illumination

0.005 Lux@F2.0 (color, 30 IRE) 0.0005 Lux@F2.0 (B/W,30 IRE)

S/N ratio

> 56 dB

Lens

Lens type

Fixed focal length

Lens Support

M12

Focal length

2.8mm

Maximum opening

2.8mm: F2.0

Field of view

Horizontal: 101°; Vertical: 57°; Diagonal: 115°

Iris control

Fixed

Close focusing distance

0.8 m

DORI Distance

Len

Detect

observation

Recognition

Identify

IPC- HUM8441- L1

61 m (200.1 ft)

24.4 m (80.1 ft)

12.2 m (40.0 ft)

6.1 m (20.0 ft)

DORI (Detection, Observation, Recognition, Identification) is a standard system (EN-62676-4) to define the ability of a person viewing the video to identify people or objects within a covered area. The numbers in this table do not reflect the distances of intelligent functions. For distances of intelligent functions, refer to the installation and commissioning manual/project design tool.

Intelligence

IVS (perimeter protection)

Tripwire, intrusion, rapid movement (the three functions support accurate classification and detection of vehicles and humans);

Smart Object Detection

Smart relaxed object;

Face detection

Face detection; track; snapshot; snapshotoptimization; And 8 expressions (anger, calm, happy, depressed, disgust, surprise, messy and fear); Set face snapshot as face photo or thumb photo;

Smart Search

Work together with intelligent NVR to perform intelligent refine search, event extraction and event video fusion

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by secondary stream)

Smart Codec

Smart H.265 + Smart H.264 +

Video Frame Rate

Main stream: 2688x1520 @ 25/30 fps Sub stream: 704x576 @ 25 fps; 704x480 @ 30 fps Third stream: 1920x1080 @ 25/30 fps

Flow capacity

3 streams

Resolution

4M (2688x1520); 3.6M (2560x1440); 3M (2048x1536); 1080p (1920x1080); 960p (1280x960); 720p (1280x720); D1 (704x576/704x480); CIF (352x288/352x240); VGA (640x480)

Bit rate control

CBR/VBR

Video Bit Rate

H.264: 3kbps-20480kbps H.265: 3kbps-20480kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-Adaptation (SSA)

Yes

White balance

Auto; Natural; Streetlight; Outdoor; Manual;

Gain Control

Manual; car

Noise reduction

3D NR

Motion detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Image rotation

0°/90°/180°/270° (support 90°/270° with 1080p resolution and below)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm event

No SD card, SD card full, SD card error, network disconnection, IP problem, irregular access, motion detection, video tampering, tripwire, intrusion, rapid movement, object missing, object rejected, parking detection, loitering detection, people picking up; External alarm, face detection and exceptional security

Network of network

Network port

RJ-45 (10/100Base-T)

SDKs and APIs

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; PRA; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (S-Profile/G-Profile/T-Profile); CGI; P2P; Milestone; Genetec

User/Host

20 (total bandwidth: 64M)

Storage

FTP; SFTP; Micro SD card (Max. support 256G); SIN

Navigator

IE: IE8, IE9 and IE11 Chrome Firefox

Management software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Cyber ​​Security

Video Encryption; Firmware Encryption; Encryption Configuration; Digestive; WSSE; Account Lockout; Security Log; IP/MAC Filtering; X.509 Certificate Generation and Import; syslog; HTTPS; 802.1x; Trusted Boot; Trusted Run; Trusted Update

Certification

Certifications

CE-LVD:EN62368-1; CE-EMC: Electromagnetic Compatibility 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B

Door door

Audio Input

1 channel (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm input

2 channels in: 5mA 3V-5V DC

Alarm output

2 channel out: 1,000 mA 30V DC/500mA 50V DC

Power

Power supply

12V DC/PoE (802.3af)

Dual Power Backup

When the power adapter and PoE are supplying power at the same time, unplug one of them. The device continues to work, but does not restart.

Energy consumption

Basic: 2.4W (12V DC); 3W (PoE) Max. (intelligence + WDR): 3.9W (12V DC); 4.8W (PoE)

Environment environment

Operating temperature

-40°C to +60°C (-40° to 140°f)

Operating humidity

≤95%

Storage temperature

-40°C to +60°C (-40° to 140°f)

Structure

Wrapper

Metal

Product dimensions

E1: 110mm x 83mm x 24mm (4.33" x 3.27" x 0.94") L1: milwau30.5mm x 48.7mm (milwau1.20" x 1.92")

Net weight

210g (0.5 lb)

Gross weight

376g (0.8 lb)

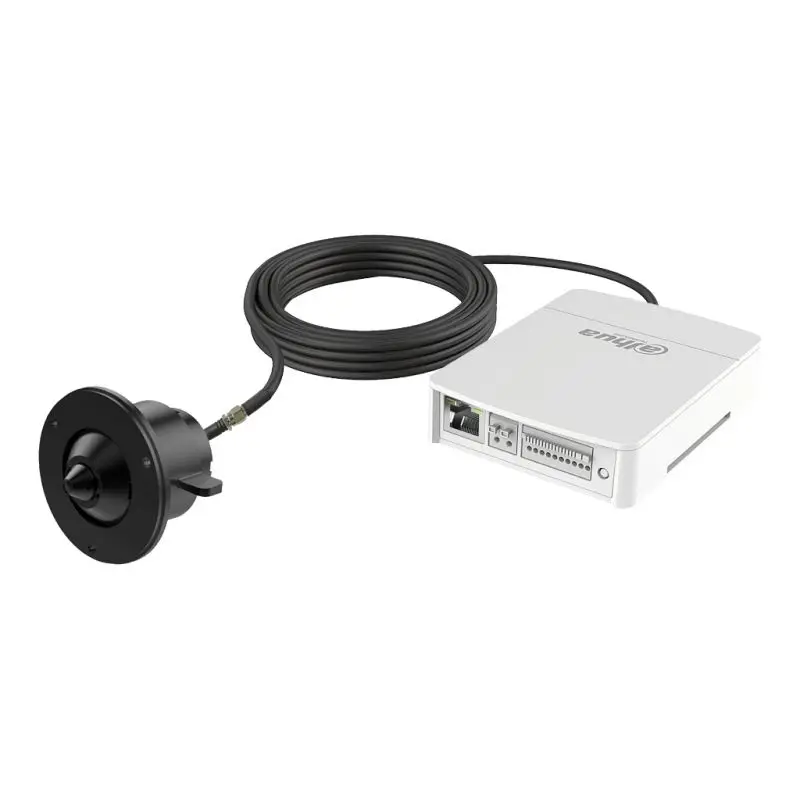

WizMind Pinhole Covert 4MP Network Camera KIT

Starlight 4MP 1/2.7" CMOS image sensor, excellent low luminance performance and high image definition.
Max. outputs 4MP (2688. 1520)@ 25/30fps.
H.265 codec, high compression ratio and ultra-low bit rate.
ROI, SMART H.264 +/H.265 +, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: intrusion, tripwire, rapid movement (the three
functions support the classification and accurate detection of vehicles and humans);
Abnormality detection: motion detection, privacy masking, scene change, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP problems, irregular access, and voltage detection.
Alarm: 2 inches, 2 outputs; audio: 1 in, 1 output; RS-232; Micro SD card max. 256G.
12V DC/PoE power supply makes installation easier.
Power on after connecting the lens to the back-end device;

Package

Soft free

Motion detection + intelligent image analysis

The Dahua IPC-HFW1431S-0280B-S4 IP camera has a built-in motion detection algorithm, which allows you to record images only when motion is detected in a given zone. This function significantly extends the amount of recorded material from important moments.

Thanks to the built-in PIR motion sensor , you will receive an immediate warning on your phone. You will access the camera, see what is happening and take action in time. By configuring motion sensitivity and PIR scheduling, you can make your camera smarter to catch what really matters.

Intelligent image analysis IVS (Intelligent Video Surveillance) – involves processing the recorded image. The task of the IVS function is to detect events with previously defined criteria (intrusion, crossing the line).

Remote viewing on mobile devices (Android, iOS)

Dahua offers access to free DMSS client software for its products . The software is used to preview the image and manage camera configuration.

Additionally, it has the function:

✅ share your device with other users

✅ Playback of video recordings

✅ Real-time image recording

✅ remote control of security systems

✅ convenient and safe login using fingerprints

✅ e-map support

✅ displaying alarm messages

✅ advanced search by events
