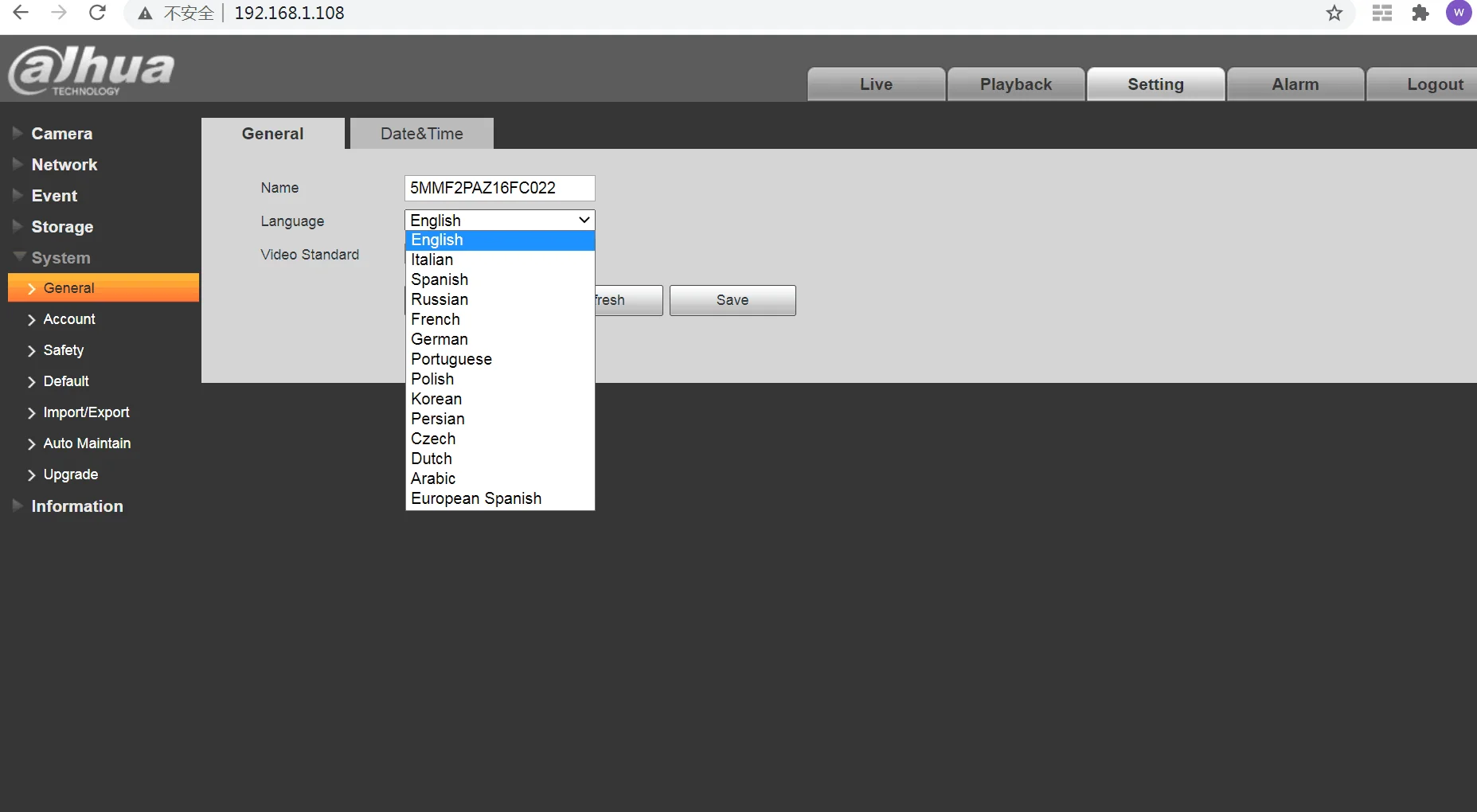

Mutil language dahua full color Bullet Camera dome camera Built-in mic 4MP home security POE camera kit with 16ch NVR monitor





IPC-HDW1431T1-A-S6 Full color ip camera infroamtion

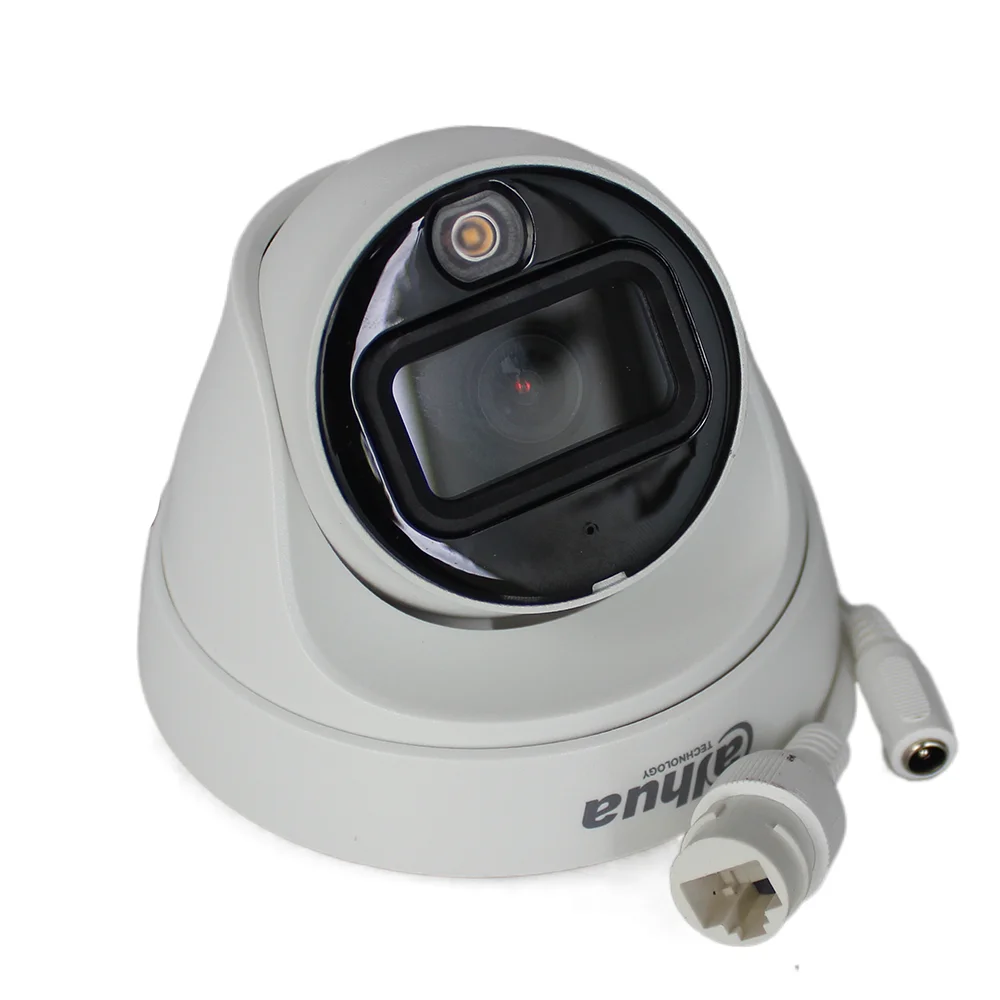

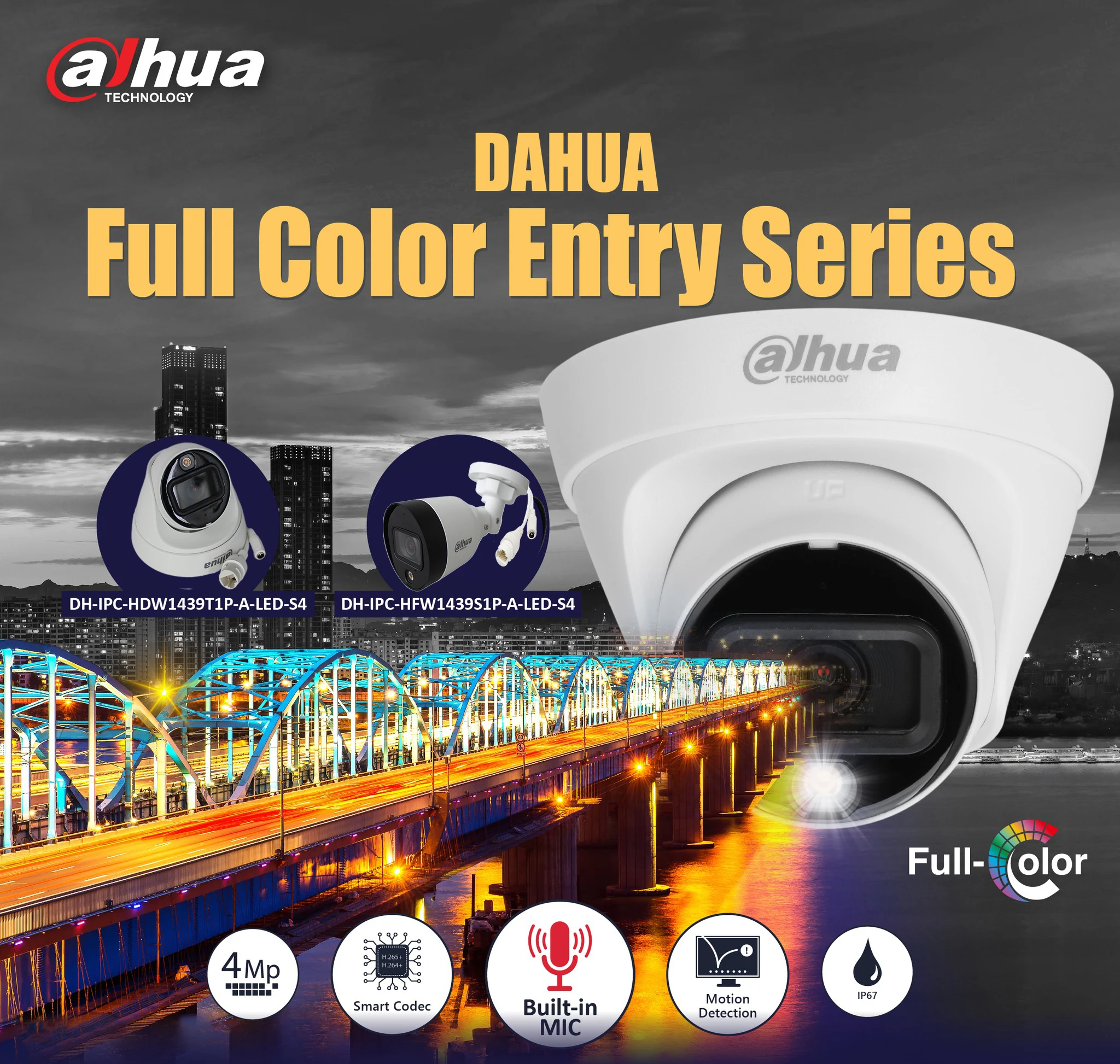

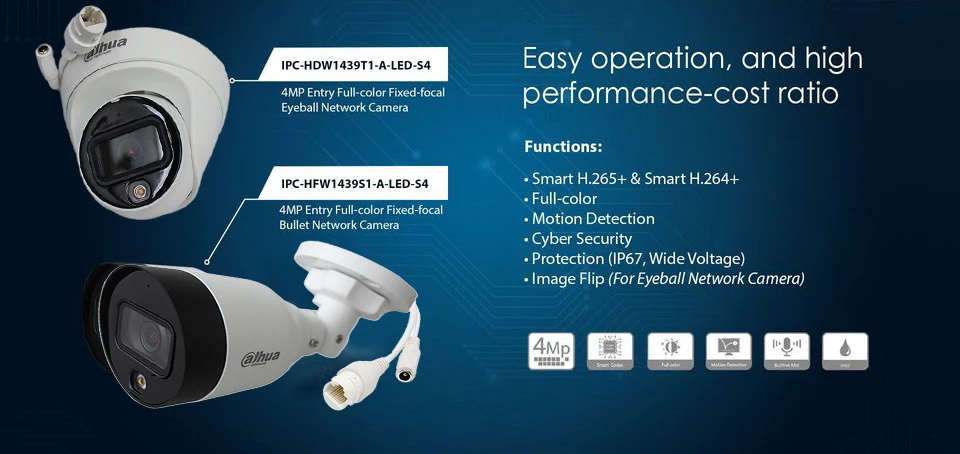

4MP Lite Full-color Fixed-focal Eyeball Network Camera

4MP Lite Full-color Fixed-focal Eyeball Network Camera
> 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in warm lights, max. illumination distance: 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Built-in Mic
> Supports max. 256 GB Micro SD card
> 12V DC/PoE power supply
> IP67 protection

Built-in IR LED

(Max IR distance: 30 m)



Micphone Support

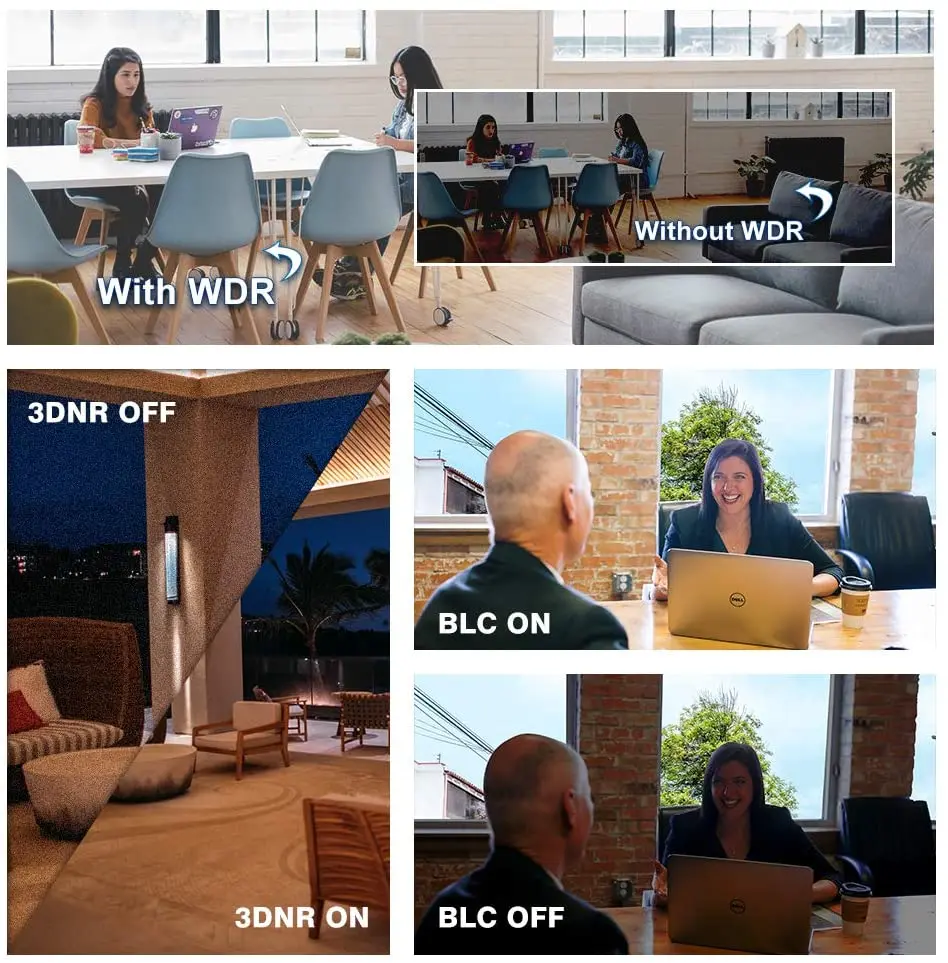

WDR, 3D DNR, HLC, BLC



The camera offers excellent image quality in 2K resolution - Quad HD 2688x1520 (4 megapixels), unlike older cameras that processed the image in a maximum resolution of 960x1080p. Very good quality of the recording is very important, it allows you to accurately verify various types of events (burglary, devastation). The better the quality of the recording, the greater the chance of apprehending the perpetrator of the incident - so bet on high-quality cameras from a proven manufacturer Dahua today.

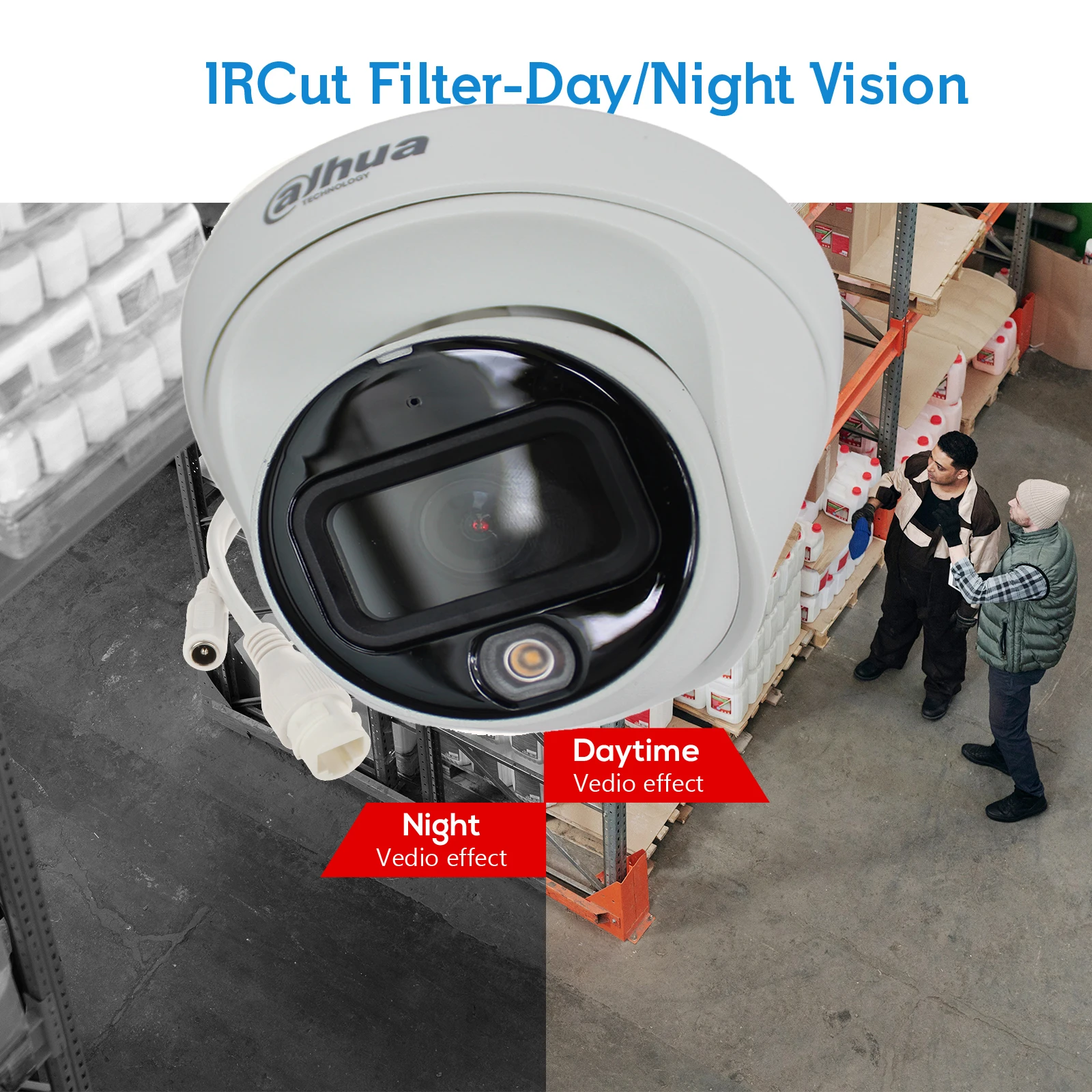

The FULL-COLOR series camera allows you to obtain a clear, colorful image even in very unfavorable lighting conditions.

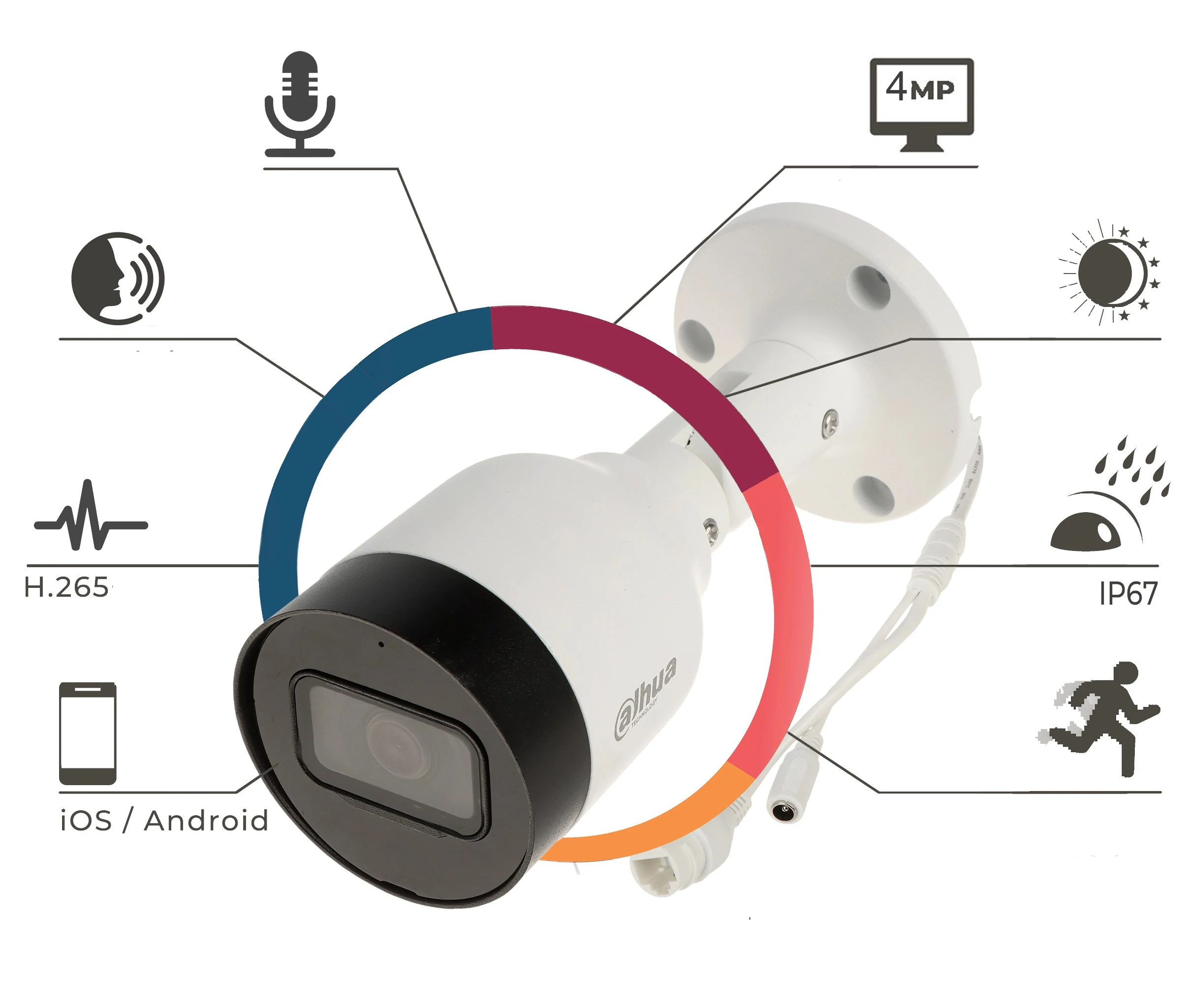

The IPC-HFW1431S1-A-S6 IP bullet camera from the FullColor series is a 4-megapixel model with a 2.8 mm lens, LED illuminator range up to 30 meters, POE power supply, intelligent IVS image analysis, built-in microphone and access from a mobile phone



Why choose this camera model?

✔ FULL-COLOR - gives the possibility of obtaining a colorful (clear) image even in very poor lighting conditions

✔ records in Quad HD resolution (2688x1520) - this is high quality that guarantees a wide frame and high pixel density

✔ has a fixed-focus 2.8 mm lens with an angle of view up to 98 °

✔ has a remote live view in the manufacturer app

✔ the camera has the function of archiving the image via a microSD card up to 256 GB - no need to install an additional recorder

✔ motion detection - intelligent image analysis allows the camera to send instant notifications when an intruder's movement is detected

✔ sound detection - has a function thanks to which it reacts to any disturbing signal

✔ built-in microphone - allows you to record and record sound in front of the camera

✔ IVS analysis - Intelligent image analysis (intrusion, line crossing)

✔ LED illuminator with a range of 30m allow the camera to process a good quality image in complete darkness

✔ thanks to the IP67 tightness class, it guarantees full resistance to strong water jets and dust - it can be installed outdoors

✔ POE power supply - the camera can be powered by a twisted pair cable (UTP) or from a 12V power adapter.

✔ gives you the freedom to install it inside or outside the house , thanks to the adjustable foot (it can be mounted on the wall or in the soffit).


Motion detection + IVS intelligent video analysis

The IPC-HFW1431S1-A-S6 dome camera has a built-in motion detection algorithm , which allows you to record the image only when motion is detected in a given zone. This feature significantly extends the amount of recorded material at crucial moments.

Thanks to the built-in PIR motion sensor, you will receive an immediate alert on your phone. You will access the camera, see what's going on and take action in time. By configuring the motion sensitivity and PIR schedule, you can make the camera smarter to catch what really matters.

The camera is also equipped with intelligent IVS image analysis . Four additional alarm functions can be configured from the device menu, WEB browser and Smart PSS client program:

✔ Line crossing

✔ Intrusion / Leaving the zone

LED illuminator + FullColor + ROI

The Dahua IPC-HFW1431S1-A-S6 camera is equipped with a modern LED illuminator with a range of up to 30 m . The system of 1 diode replaces the standard infrared illuminator used in cameras. If you install the camera at the front door/window and position it facing the yard, you can easily see if there is an intruder around your house.

The Dahua Full Color camera guarantees images in true colors around the clock, even in very low light conditions. For this purpose, innovative technologies were used: an advanced fixed-focus lens with an aperture of F1.0, a white light illuminator and a photosensitive sensor of the highest class .

The intelligent ROI (Region of Interest) function allows you to increase the quality of selected image fragments and allows you to reduce the quality of other fragments. This has a positive effect on the use of the processing power of the signal processor, reducing network bandwidth requirements and improving the identification of only the most important points.

IP67 waterproof housing

The ability to operate the camera in a wide range of temperatures (from -40 to 60 ° C) makes it perfect for both cold winter nights and hot summer days.

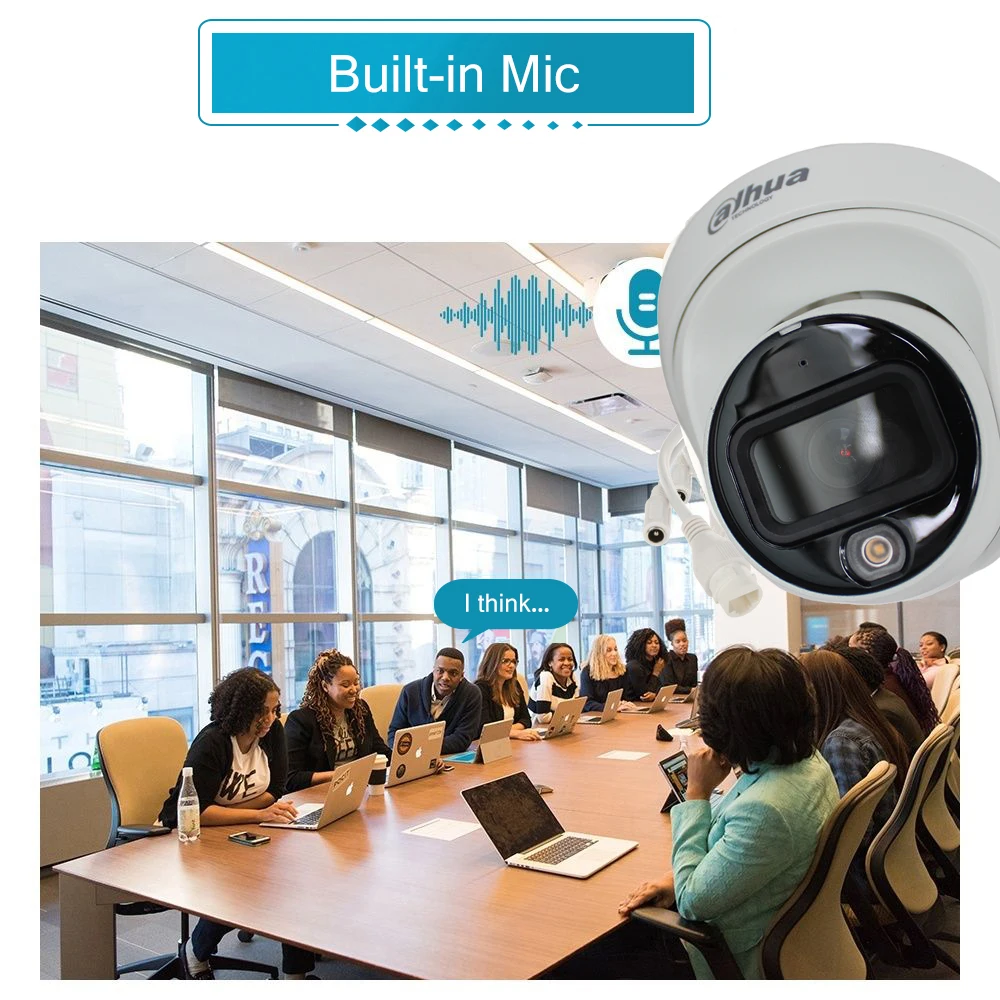

Built-in microphone

Built-in microphone - allows you to record and record sound in front of the camera

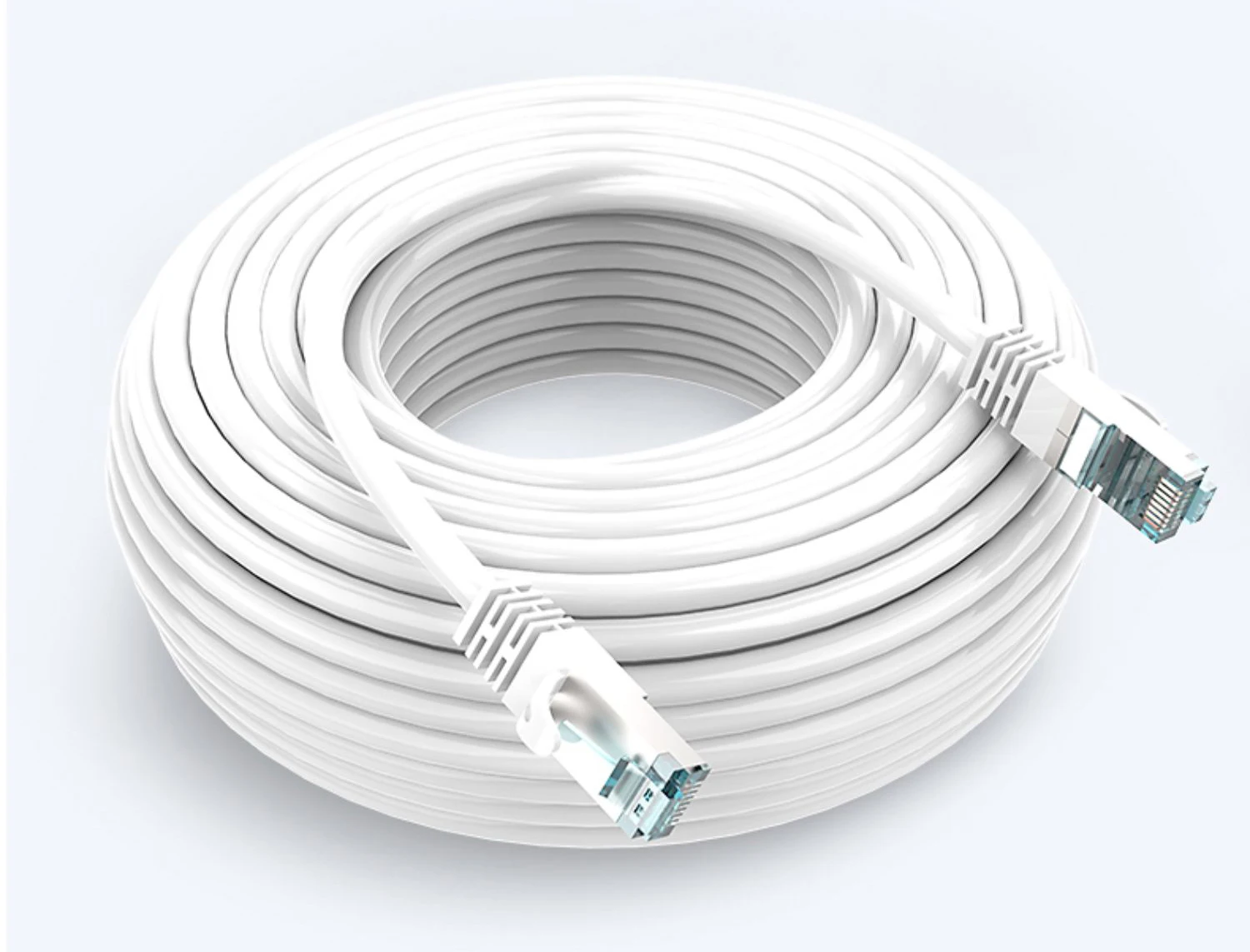

Lan  cable free send

POE switch free send



POE monitor have 8ch POE,and we send 1more 16ch free



Composition of a small monitoring set

✅ IP cameras dahua 4MP 4pcs/8pcs/16pcs
✅ IP recorder monitor 16ch include 8poe port 1pcs
✅ hard drive can slect
✅4/8/16pcs lan cabl

16-channel recorder. It simultaneously supports 16 cameras with a resolution of up to 8 Mpx

The NVR4116HS-4KS3 model   is  a 16- channel  IP recorder , dedicated to Dahua monitoring systems  . Saving the recorded video allows you to connect  1 SATA  hard drive   with a capacity of up to  10 TB . Additionally, the recorder is equipped with  2x USB 2.0  inputs  ,  1x HDMI  output  ,  1x VGA  output  . The device has, among others, motion detection functions.

The device comes with a free  Smart PSS program  that allows for accurate management of the entire system. The great advantage of the recorder is the option to communicate via the cloud  b . Remote viewing is enabled by the  DMSS/iDMSS mobile application available for Android  and  iOS  phones

Support for up to 16 IP cameras in high resolution 4K

The Dahua recorder   is a modern network device that has been designed to comprehensively support high-resolution cameras. It allows cooperation with 16 IP cameras (POE switch) that process images in a resolution of up to  8Mpx  ( 3840x2160 ).

The most important features:

The Dahua recorder   is a modern network device that has been designed to comprehensively support high-resolution cameras.

If you have come here, you are looking for a registrar who:

✅  records in a resolution of up to 8 Mpx -  this is high quality guaranteeing a wide frame and high pixel density

✅ allows you to record from  16 IP cameras simultaneously

✅  works with cameras  with IVS image analytics

✅  has  remote live viewing in the manufacturer's application

✅  has space for an HDD up to  10 TB

✅  gives you freedom in the arrangement of cabling and recorder, thanks to  the possibility of connecting an external PoE switch

✅  archives on external  USB media

✅  allows you to  control  PTZ rotating heads

✅  access from your mobile phone  (Android, iOS)

When purchasing the recorder as a set, you receive:

✅ Mouse for USB control

✅ Cables to connect the drive

✅ Power supply for the recorder

✅ UTP patch cord (RJ-45) for internet connection.

Technical Specifications:

• Number of channels:  16
• Recording resolution:  up to 8 Mpx (4K Ultra HD)
• Bitrate:  80Mbps
• Video compression:  H.265/ H.264
• Video outputs:  1x HDMI, 1x VGA
• Audio inputs/outputs:  1x RCA/ 1xRCA
• USB ports:  2x USB 2.0
• Network interface:  1x Ethernet 10M/100M
• Live preview:  web server, VMS software (DSS/Smart PSS, DMSS, P2P
• Network protocols:  HTTP, HTTPS, TCP/IP, IPV4, UPNP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS
• Hard drive space:  1x HDD (up to 6TB)
• Power supply:  12 VDC
• Dimensions:  260 x 224.9 x 47.6mm
• Weight:  0.8 kg
•


The most important features

• Compression:  H.265/H.264/MJPEG;
• Bitrate:  max. 80Mbps;
• Recording/playback: up to  8 Mpx;
• Video inputs:  HDMI/VGA;
• Audio:  one two-way audio track - intercom, sound recording from 8 IP cameras;
• IVS -  intelligent image analytics system  - works with network cameras that support abandoned and missing object detection, line crossing detection, intrusion detection, face detection, people counting, heat map;
• PTZ camera control -  Intelligent 3D positioning with Dahua PTZ camera;
• Privacy masks:  capture recordings only from designated areas;
• Digital image zoom:  zoom in for a more detailed image;
• 2 USB 2.0 ports:  1 front panel + 1 rear port;
• Supported hard drives:  1x 6TB SATA ;
• Working in the P2P cloud : allows you to instantly establish a direct connection to a computer or mobile device (iOS or Android);
• Remote View:  CMS (DSS/PSS) & DMSS, Web Browser;
• Passive cooling:  no additional fans needed;
• ONVIF 2.4 compliant  ;
• Dimensions:  260 x 225 x 48 mm;

ARTIFICIAL INTELLIGENCE - FILTERING SMD+ FALSE ALARMS

The WizSense series uses AI self-learning technology - Smart Motion Detection Plus (SMD+) to distinguish objects appearing in the frame and filter out alarms. This technology can distinguish between a person, a car or a small animal. Small animals, moving leaves, rain or falling shadows do not trigger an alarm.

SMD+ false alarm filtering

The camera uses artificial intelligence (AI) self-learning technology to distinguish objects appearing in the frame and filter out alarms.

This technology can distinguish between a person, a car or a small animal. Small animals, moving leaves, rain or falling shadows do not trigger an alarm.

Motion detection + Intelligent image analysis

The recorder has support for  Intelligent Image Analysis  and  motion detection , making it perfect for use with modern IP cameras.

Additionally, the ability to view live images from cameras on a smartphone allows you to assess the situation on an ongoing basis, as we receive an appropriate  notification on our phone  when an alarm is triggered/an event is detected.

The functions are implemented in cooperation with the recorder and cameras supporting these functions:

✅ Advanced perimeter protection functions: intrusion, crossing the line with separate rules for vehicles and pedestrians,

✅ classification of people and vehicles ,

✅ face detection ,

✅ counting people ,

✅ SMD PLUS - searching for an object classified as: human, motor vehicle, non-engine vehicle

Service via phone application

The DMSS phone application   enables remote viewing from the IP monitoring system thanks to the cloud-based work system. Remote connection to the recorder and IP cameras, thanks to the  P2P (Peer to Peer) service  , allows you to manage the monitoring system and add new cameras.

Remote viewing on mobile devices (Android, iOS)

Dahua  offers access to free  DMSS client software for its products . The software is used to preview the image and manage camera configuration.

Additionally, it has the function:

✅  share your device with other users

✅  Playback of video recordings

✅  real-time image recording

✅  remote control of security systems

✅  convenient and safe login using fingerprints

✅  e-map support

✅  displaying alarm messages

✅  advanced search by events

Free Smart PSS software

SMART PSS (Smart Pro Surveillance System)  allows you to manage devices such as  DVR, NVR, CVR , and  IPC . Additionally, it will support SVR storage devices, video decoders and other  Dahua and BCS  devices that have a network interface. It has a live view function on up to 256 channels, including up to 64 windows per card. In turn, the built-in PC-NVR module enables continuous recording, detection and alarm of up to 32 channels.

PTZ camera control function

Dahua NVRs allow you to manage the basic parameters of PTZ (rotary) network cameras. Controlling various camera functions such as zoom and focus, rotation speed, manual definition of the field of view.

It guarantees control of the monitoring system to the maximum extent possible, tailored to the user's needs.

Connecting cameras via an external POE switch

In the  Dahua NVR4116HS-4KS3 recorder  , the cameras are connected using an external  PoE switch.  This recorder model can support up to  16 IP cameras .
